Bulk Storage

BULK STORAGE

OVERALL VIEW

OUTSIDE

INSIDE
BULK STORAGE

OVERALL VIEW

OUTSIDE

INSIDE
BULK STORAGE

SUPERMIST

Agricultural products like potatoes and carrots need to be stored under quite humid conditions. Especially in dry climates it is necessary to add moisture to the air. For this application Allround has developed a high-pressure pump system which is able to humidify the air with droplets

SUPERMIST
BULK STORAGE

TURN KEY CHILLER SYSTEM

In case outside air cannot be used for cooling down the product because it is too warm our cooling machine TKC solo is the perfect solution. The unit will cool the product above the product heap which will be distributed through the product by the fans.

TURN KEY CHILLER SYSTEM
BULK STORAGE

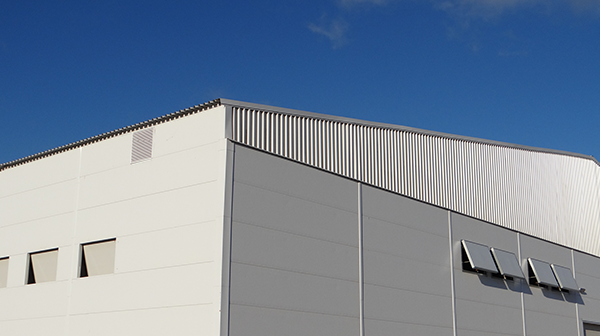

AIR HATCH

For ventilation with outside air the air inlet and outlet hatches are needed. Allround Hatches are made of PIR sandwich panels to ensure proper insulation of the storage section.

AIR HATCH
BULK STORAGE

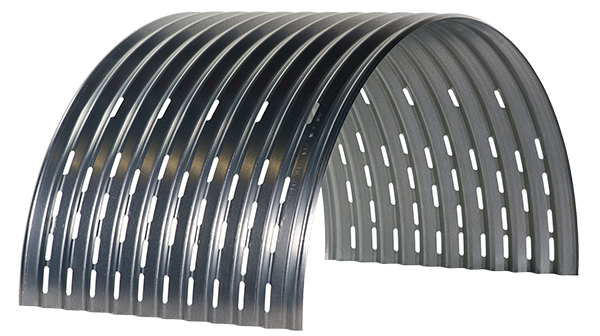

AIR DUCTS

Bulk storage of agricultural product require air ducts where the conditioned air can be blown into to be divided throughout the heap. The most practical and hygienically option is to use semicircular air ducts. The ducts are produced by Allround Storage.

AIR DUCTS

BULK STORAGE
BULK STORAGE

HEATEXCHANGER

High concentrations of CO₂ is modern cold stores are very common. This will have an negative impact on the quality of many agricultural products. Potatoes for the chips industry will have a bag frying quality when stored under too high CO₂ levels for example. CO₂ levels can be brought down by inserting outside air into the cold rooms. To benefit the cold air with high CO₂ level that is evacuated from the cold rooms, this air is passing an high effective heat exchanger which cools down the inserted outside air.

HEAT EXCHANGER
BULK STORAGE

SPACEFINDER

The Allround VP Space Finder ASF950 is designed in such a way that bulk stores are filled in the most effective manner. The space Finder makes sure every inch of the storage facility is used.

SPACEFINDER
BULK STORAGE

SPACEFINDER

The Allround VP Space Finder ASF950 is designed in such a way that bulk stores are filled in the most effective manner. The space Finder makes sure every inch of the storage facility is used.

SPACEFINDER

PRODUCTS

Potatoes
Onions

Most suitable for

Large quantities of the same product and variety
Industrial products

REASON FOR CHOOSING BULK STORAGE

Effective drying and cooling
Equal temperature and humidity
Optimal distribution of anti-sprouting agents
Very cost-effective method of storage

PRODUCT FLOW

LOADING BULKSTORE

The product will arrive from the field by tip trailers. The tip trailer unloads the product in the Receiving Hopper.
From the hopper the product can be placed either in boxes or to the bulk section.
After placing the product in the Receiving Hopper, the product gets cleaned and Pre graded by the Pre-Grader.
Small potatoes that are graded out are collected on the Small potato Belt. The soil will fall through this belt.
Soil is transported by Waste belt and the cleaned and graded product is transported via Product belt and the Telescopic Conveyors to the Space finder.
With the Space Finder the product is loaded in the storage.

UNLOADING BULKSTORE

With the help of the Pick-up Scooter the product is transported via the Telescopic Conveyors to the Elevator and to the Box filler placed outside the section.
The boxes can be placed in the corridor to warm them up before processing.
After warming up they are transported to the processing line to be processed.

AIRFLOW

DESCRIPTION

COMPONTENTS

SENSORS

Temperature sensors
Relative Humidity sensor
CO2 sensor
Meteo station (Incorporates the outside temperature and outside RH sensor)

SWITCH PANEL

GO TO

PRICE INDICATOR OF STORAGE SOLUTION

This Tool is made to provide you with a quick indication of the needed investment to turn an existing building into a storage facility for agricultural products.
